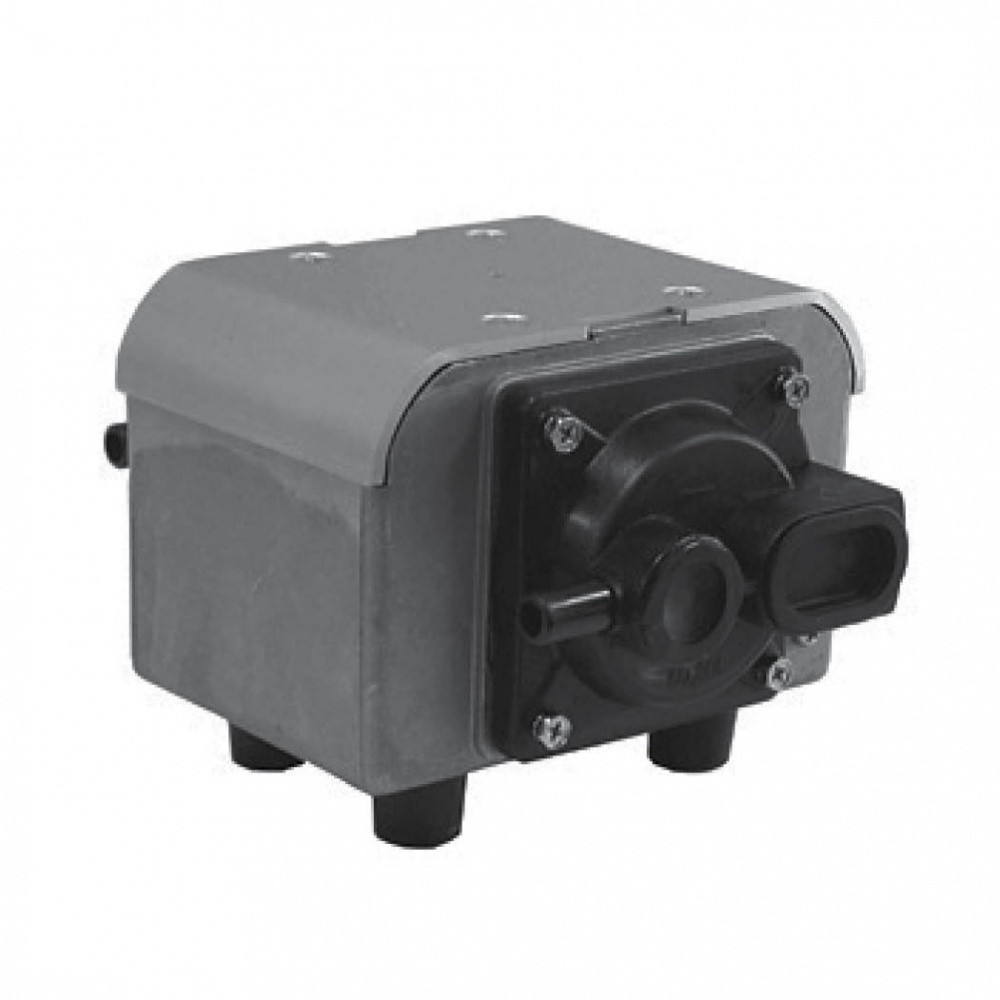

ALITA linear air pumps / OEM series of the air pump

ALITA - AL6B/SB, AL15B/SB, AL30B/SB, AL40B/SB, AL50B/SB

Characteristics:

  • smooth air flow
  • low noise level and vibrations
  • high efficiency
  • low energy consumption
  • long service life
  • oil-free model
  • compact and light design
  • simple maintenance
  • heat protection
  • indoor and outdoor use
  • reliable interrupted and continuous operation
  • safety design
  • automatic membrane defect indication





Applications:

  • wastewater treatment
  • aeration of ponds, aquaristics
  • bubble baths and entertainment facilities
  • mixing of the solutions
  • air purification and sampling
  • pneumatic beds, air mattresses
  • medical and research facilities
  • diverse industry



Principle:

Alita linear air pumps are an effective source of compressed air. They are designed to have a low noise level and low energy consumption. Air circulation is created by the vibrating movement of flexible membranes (1), placed in covers (2) with non-return valves (3). The permanent magnet (4), on which the membranes are anchored, is moved by an alternating magnetic field with a generated electromagnetic coil pair (5). The entire process functions without mechanical friction and a low noise level.



alita_princip_cb-01_1233

AL-6B

AL-15B

AL-20B



al615b_274 al-6b15b20b_rozmery_1150






AL-6SB

AL-15SB

AL-20SB



al615sb_274 al-6b-15b-20sb_rozmery






AL-30B

AL-40B

AL-50B



  al40b_300
al-30b-40b-50b_rozmery_1113






AL-30SB

AL-40SB

AL-50SB



al40sb_330
al-30sb-40sb-50sb_rozmery



Models up to  AL-120B/SB.

If you are interested in price offer, please, fill in our inquiry form.

logo_rohs_55

Alita Linear Air Pumps meet Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. logo-ce_46 ALITA standard linear air pumps conform to the European Community‘s Machinery Directive (CE).
