Model V-VK



The flowmeters of the V-VK series are rectilinear flow measuring devices suitable for medium and large flows of liquids and gases. Immediate flow measurement is read with excellent accuracy on a scale printed on a calibrated truncated conical tube in polycarbonate or polysulfone (non-toxic and unbreakable). The float is made of stainless steel AISI 316.

Other features:
easy installation, easy maintenance, high accuracy

Maximal thermal endurance for metal structure: 120 °C
Maximal thermal endurance for plastic structure: 70 °C
Maximal working pressure for metal structure: 16 bar
Maximal working pressure for plastic structure 8 bar
Accuracy: +/- 5 %.

Material versions of the flowmeter body:

  • Polypropylene - thermal endurance up to 100 ° C and max. pressure 6 bar
  • Polysulfone - thermal endurance up to 160 ° C, suitable for aggressive liquids
Type Water l/h Air m3/h Threaded connection
DN A B C
V-3 320
420
600
800
10 3/4”
1”
380 53 46
V-3b 1200
1500
20 3/4”
1”
380 53 46
V-4 2000
2500
3500
40 1” 380 64 46
V-5b 4000
5000
6000
60 1 1/2” 380 86 46
V-K1 6000
8000
80 1 1/2” 485 78 46
V-K2 10000
12500
15000
130 2 1/2” 490 98 53
V-K3 20000
25000
30000
37000
45000
250 2 1/2” 490 108 53

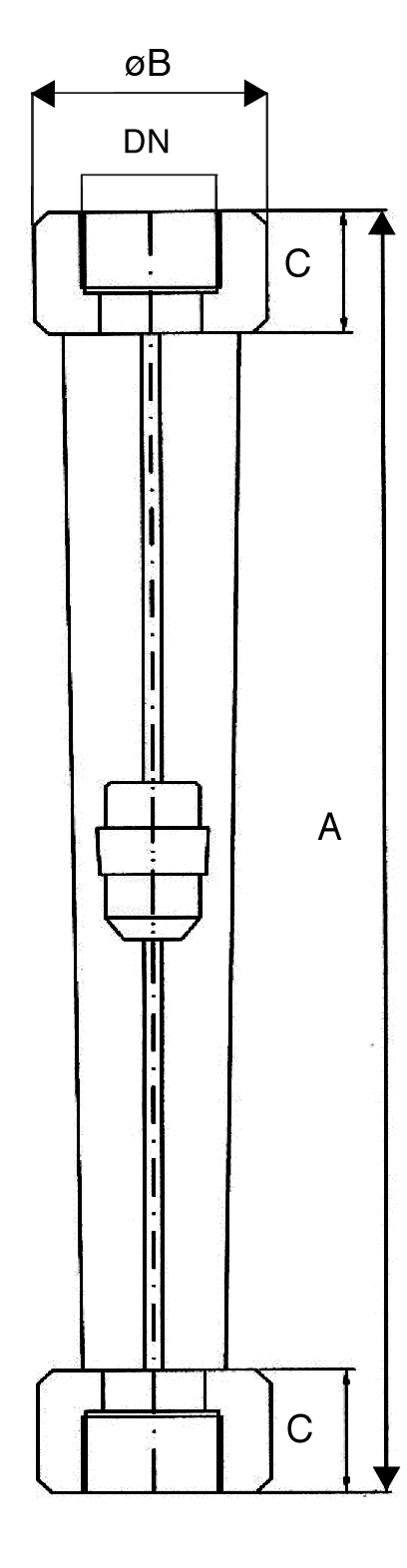

Flowmeter V-VKFlowmeter V-VK dimensions

If you are interested in price offer, please, fill in our inquiry form.
