Model D-EL



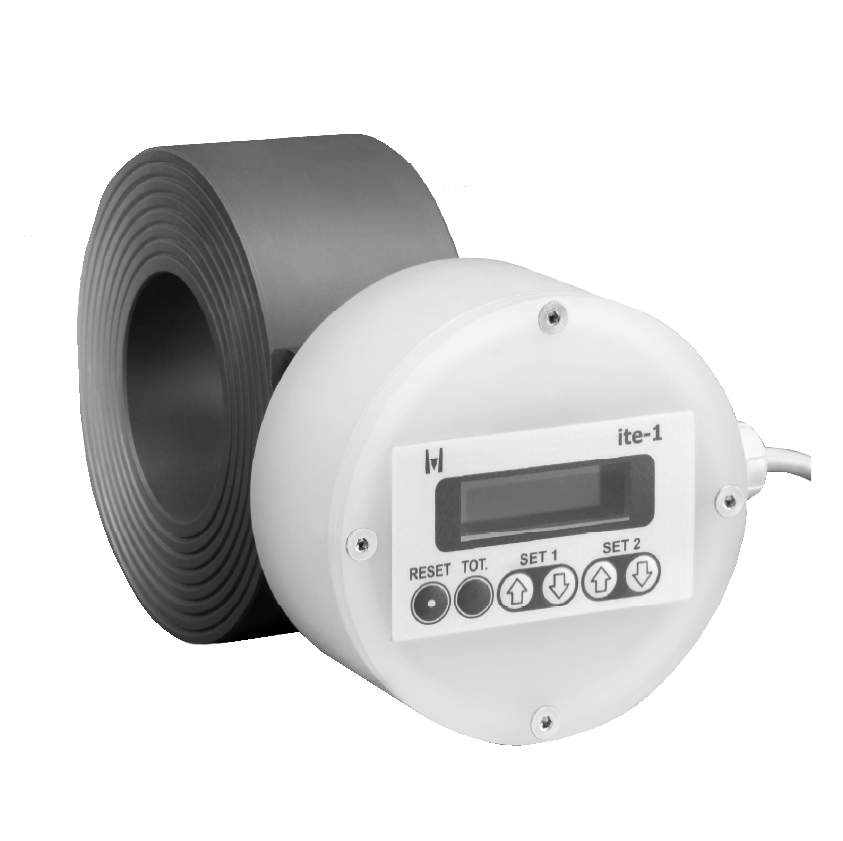

The D-EL flowmeter is used to measure medium and large fluid flows. The flow meter can be installed on horizontal or vertical pipes. It is produced in two versions, with a threaded connection and an intermediate flange connection. The D-EL flowmeter uses the Hall sensor principle for measurement. The body of the flowmeter is made of PVC and Moplene with a maximum heat resistance of 60 ° C.

Maximal thermal endurance: 60 °C
Maximal working pressure: 16 bar
Accuracy: +/- 2/3 %.

Versions:

With display

  • threaded connection
  • wafer connection


With pulse output

  • threaded connection
  • wafer connection
Type

Range m3/h

Threaded female

Inserted Flanges DN

D-EL-15 0,5 - 5 1/2” --
D-EL-20 0,8 - 8 3/4” --
D-EL-25 1,5 - 15 1” --
D-EL-32 2 - 20 1 1/4” --
D-EL-40 3,5 - 35 1 1/2” DN 40
D-EL-50 7 - 70 2” DN 50
D-EL-65 10 - 110 -- DN 65
D-EL-80 18 - 180 -- DN 80
D-EL-100 25 - 250 -- DN 100



Notice:

It is a need to set the flowmeter in the position which is essential for keeping the accuracy of the measurement. The pipe lying in front of and behind of the flowmeter should be flat in the length of 10x of the pipe dimension (10 x DN).




D-EL Display - Inter-flange connection

D-EL Display - Inter-flange connectionD-EL Display - Inter-flange connection dimensions



D-EL Display - Threaded

D-EL Display - ThreadedD-EL Display - Threaded dimensions



D-EL Pulse output - Threaded / Inter-flange connection


D-EL Pulse output - Threaded / Inter-flange connection





D-EL Pulse output - Threaded / Inter-flange connection dimensions


D-EL Pulse output - Threaded / Inter-flange connection dimensions

If you are interested in price offer, please, fill in our inquiry form.
