Model OPdiaphragm tee joint flowmeters

Diaphragm tee joint flowmeters

The flowmeters OP are compact, lightweight with visual part of the measured range situated in the transparent part of the impact – resistant acrylic (PMMA), maximal thermal endurance is

70 °C. The flowmeters are suitable for checking and measuring of the large range in the small space. They permit the installation onto horizontal pipe only. The maintenance and cleaning of the acrylic flowmeter is very simple.
The flowmeters OP are suitable for the waste water plants, flameproof liquids, vintner′s lines, heating plants, etc.

Maximal thermal endurance:
70 °C.
Maximal test pressure for metal version: 16 bar.
Maximal test pressure for plastic version: 8 bar.
Accuracy: +/-5 %.

Type
Max. potential range WATER
m3/h
UNI PN 10
 ASA 150
DN A
B
DN
A B
OP-40 11-15 - 24 - 32 40 92
288
1 ½“ 83
279
OP-50 25 - 35 - 54 - 70 50
107
304
2” 102
298
OP-65 40 - 54 - 80 - 110  65 127
323
2 ½“ 121
317
OP-80 70 - 95 - 130 - 180  80 142

338

3” 134
331
OP-100 80 - 110 - 180 - 250  100 162 358 4” 172
368
OP-125 160 - 220 - 300 - 400 125
192 388
5” 194
390
OP-150 180 - 250 - 400 - 520  150 218
414 6” 220
416
OP-200 320 - 420 - 700 - 900 200
273
469
8” 277
473

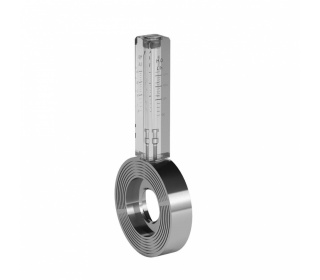

Flowmeter model_op-1_600

op_nakres_574

Notice:

It is a need to set

the flowmeter in

the position which is

essential for keeping the accuracy

of the measurement. The pipe

lying in front of and

behind of the flowmeter

should be flat in the

length of 10x of the

pipe dimension (10 x DN).
