MODEL > R-R
Akrylic (PMMA) flowmeters for medium flow rates with the needle valve

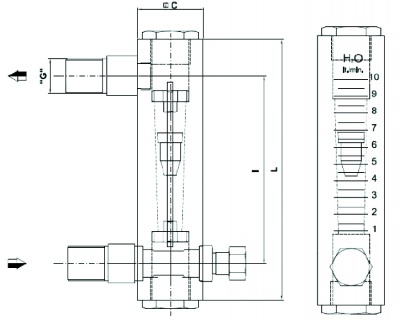

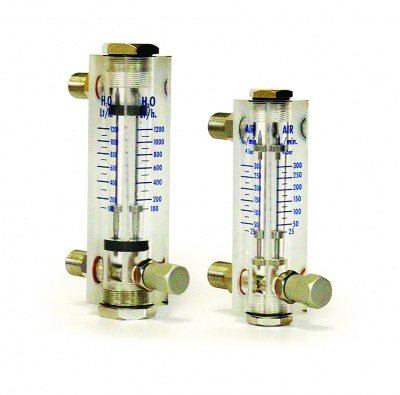

 Akrylic (PMMA) flowmeters for medium flow rates with the needle valve - model R-R Scheme for akrylic (PMMA) flowmeters for medium flow rates with the needle valve







































The “R-R” flowmeters with the needle valve are manufactured in acrylic material (PMMA) only and with the indicator made by different materials: AISI 316, Hastelloy or PVC for the aggressive liquids. They are equipped with the needle valve in nickel-plated brass.



Accuracy: +/- 5 %.
Test pressure: 10 bar.

















 Type Standard flow rate
 Threaded connections
water air
l/h  m³/h
 G  L  I C
R-1/R  120   6    3/8" - 1/2"   160  115 40
200
300   8
400
500  10
R-2/R   600
   3/8" - 1/2"  190  140  45
800 15
1200
1500   25
 2000
