MODEL > LB/89

Laboratory flowmeters



The LB/89 series flowmeters are instantaneous measuring devices



The LB/89 series flowmeters are instantaneous measuring devices

1 2 3



















































The LB/89 series flowmeters are instantaneous measuring  devices suitable for small flow rates
of liquids or gases.

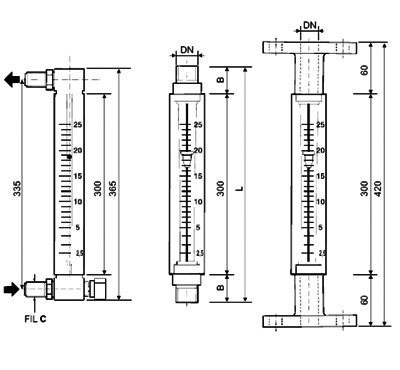

The flowmeters can have threaded axial, threaded square or flanged axial connections.
They are produced entirely in acrylic material (PMMA). Max. thermal endurance  is 70 °C.
On request, they

can be equipped with a min./max. flow rate indicator.


Versions:

1. with brass or stainless steel needle valve


2. with threaded axial connections in PVC or AISI 304


3. with flanged connections in PVC or AISI 304

Maximal thermal endurance: 70 °C.
Maximal test pressure: 10 bar.

Accuracy: +/- 5 %





Air

l/min

Water

l/h

 C Flanged connections

DN

 B C L

Air

m3/h

Water

l/h

 C

Flanged connections

DN

 B C L
10 25 3/8" 1/2" 10 - 15 35 35 270

6

8

10

 320 3/8" 1/2" 10 - 15 40 40 380
20 60   420
30 100   600
50 150   800
70 200



You can find other models for measuring middle flow rates.
