Diaphragm tee joint flowmeters

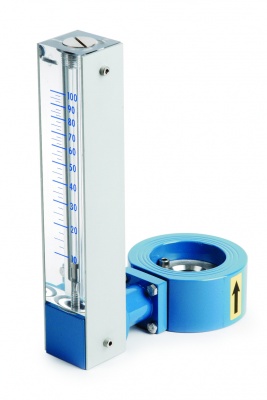

Flowmeter LaTecnicaFluidi - model PD for large flow rates.

  scheme 1 - flowmeter PD



schceme 2 for flowmeter PD















The flowmeters PD are compact, lightweight with visual part of the measured range situated in the transparent part of the impact – resistant acrylic (PMMA), maximal thermal endurance is 70 °C. The flowmeters are suitable for checking and measuring of the large range in the small space. The maintenance and cleaning of the acrylic flowmeter is very simple.  Flowmeters can be installed on horizontal as well as vertical pipe.
The flowmeters PD are suitable for the waste water plants, flameproof liquids, vintner′s lines, heating plants, etc.
Maximal thermal endurance: 70 °C.
Maximal test pressure for metal version: PN 16.
Maximal test pressure for plastic version: PN 10.
Accuracy: +/-5 %.



Notice:

It is a need to set the flowmeter in the position which is essential for keeping the accuracy of the measurement. The pipe lying in front of and behind of the flowmeter should be flat in the length of 10x of the pipe dimension (10 x DN).























Type

Max. potential range WATER

m³/hod

 UNI PN 10  ASA 150
DN  A  B  DN  A  B
  PD-40   20 - 32
 40  92  110  1 ½"
83  107
 PD-50 45 - 70  50  107  120  2"  102  123
 PD-65 70 - 110  65   127  130 2 ½"
121   127
 PD-80  110 - 180
 80  142  138  3"  134  134
 PD-100 160 - 250  100  162  149  4"  172  154
 PD-125 270 - 420  125  192   164 5"  194  165
 PD-150 330 - 520  150   218 177  6"  220  178
 PD-200 580 - 900  200  273  205  8"  277  207
