< back NOISE COVERS

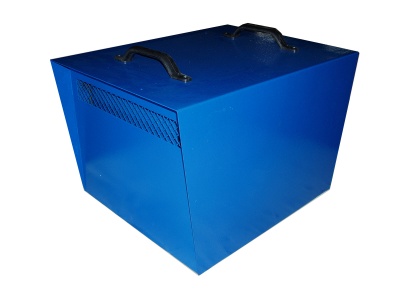

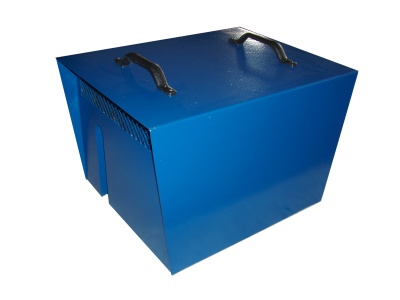

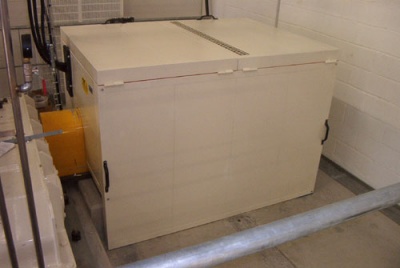

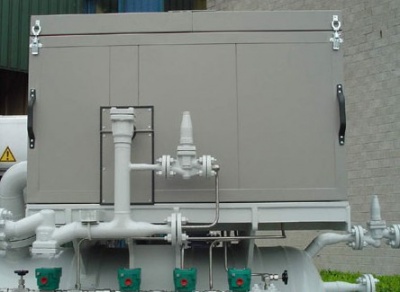

Noise covers - original accessories for the side channel blowers.
NOISE COVERS
Noise covers - original accessories for the side channel blowers.
 |
Noise reduction and ventilation-thermal properties:
Construction:
|
Noise covers > double stage side channel blowers INW
| Technical parameters |
PK 420 | PK 720 |
| Noise reduction | up to 20 dB | up to 20 dB |
| Sizes internal (l x w x h) | 500 x 350 x 350 mm | 600 x 475 x 475 mm |
| Sizes external (l x w x h) | 700 x 550 x 450 mm | 800 x 675 x 575 mm |
| Weight | cca 100 kg | cca 120 kg |
| Forced ventilation | 180m3/h | 180m3/h |
| Designed for series of blowers | INW 220 / INW 420 | INW 520 / INW 720 |
Noise covers > high pressure side channel blowers INW-HP
| Technical parameters | PK-HP 210 | PK-HP 220 | PK-HP 320 | PK-HP 420 | PK-HP 630 |
| Noise reduction | up to 20 dB | up to 20 dB | up to 20 dB | up to 20 dB | up to 20 dB |
| Sizes external (l x w x h) mm |
700x550x450 | 850x650x550* | 700x700x600* | 700x700x650* | 750x1050x700* |
| Weight | 60kg | 74kg | 73kg | 87kg | 110kg |
| Forced ventilation | yes | yes | yes | yes | yes |
* These dimensions are approximate, will be specified during delivery.
 |
 |
 |
 |
If you are interested in price offer, please, fill in our inquiry form.
