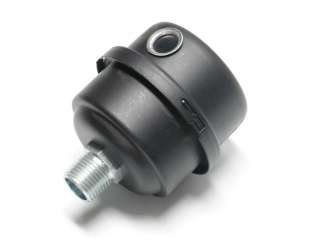

Small compact air filters with integrated silencer
| Filters | Flow (m³/h) |
Connection (outer thread) G |
Dimensions (mm) |
Number of damping tubes |
Weight (kg) |
Typ / Filter's cartridges |
Filter | Dimensions (mm) | |||||
| A | B | C | a | d | h | ||||||||
| FT.7.04 | 7 | 1/4” | 70 | 16 | 64 | 1 | 0,11 | K.04 | FT.7.04 | - | 57 | 25 | |
| FT.14.04 | 14 |
3/8” | 70 | 16 | 64 | 1 | 0,11 |
K.04 |
FT.14.04 | - | 57 | 25 | |
| FT.14.06 | 14 |
3/8” | 90 | 16 | 83 | 1 |
0,23 | K.06 | FT.14.06 | - | 76 | 35 | |
| FT.14.04 | 14 |
½” | 76 | 22 | 64 | 1 |
0,11 | K.04 | FT.14.04 | - | 57 | 25 | |
| FT.20.06 | 20 |
½” | 97 | 22 | 83 | 1 |
0,23 | K.06 | FT.20.06 | - | 76 | 35 | |
| FT.20.10 | 20 |
½” | 105 | 22 | 105 | 1 |
0,45 | K.10 | FT.20.10 | - | 76 | 35 | |
| FT.20.06 | 20 | 3/4” | 106 | 32 | 83 | 1 | 0,23 |
K.06 | FT.20.06 | - | 76 |
35 | |
| FT.43.10 | 43 | 3/4” | 114 | 32 | 105 | 1 | 0,45 | K.10 | FT.43.10 | - | 102 | 35 |
|
| FT.60.10 | 60 | 1” | 114 |
32 |
105 | 1 | 0,45 | K.10 |
FT.60.10 |
- | 102 | 35 | |
Always choose an air filter with a flow that is greater than the suction output of the blower.
The connection dimensions of the filter and blower may differ.
|
|
 |
Characteristic:
> Fully drawn weatherhood - no welds to rust or vibrate apart
> Tubular silencing design - tube is positioned to maximize
attenuation and air flow while minimizing pressure drop
> Durable carbon steel construction with powder coated finish
> Interchangeable elements
> Ability to mount vertically, horizontally
> Temp (continuous): min -15 °F ( -26 °C) max 220 °F (104 °C)
> Filter change out differential: 10“-15“ in. H2O above initial delta P
> Typical noise attenuation up to 15 dB‘s (due to the wide range of applications and machines
these units are used on, a single graph is insufficient. Please inquire for your specific requirement)
> Pressure drop graphs available upon request
> 99%+ removal efficiency std: Paper = 2 micron, Polyester = 25 micron
